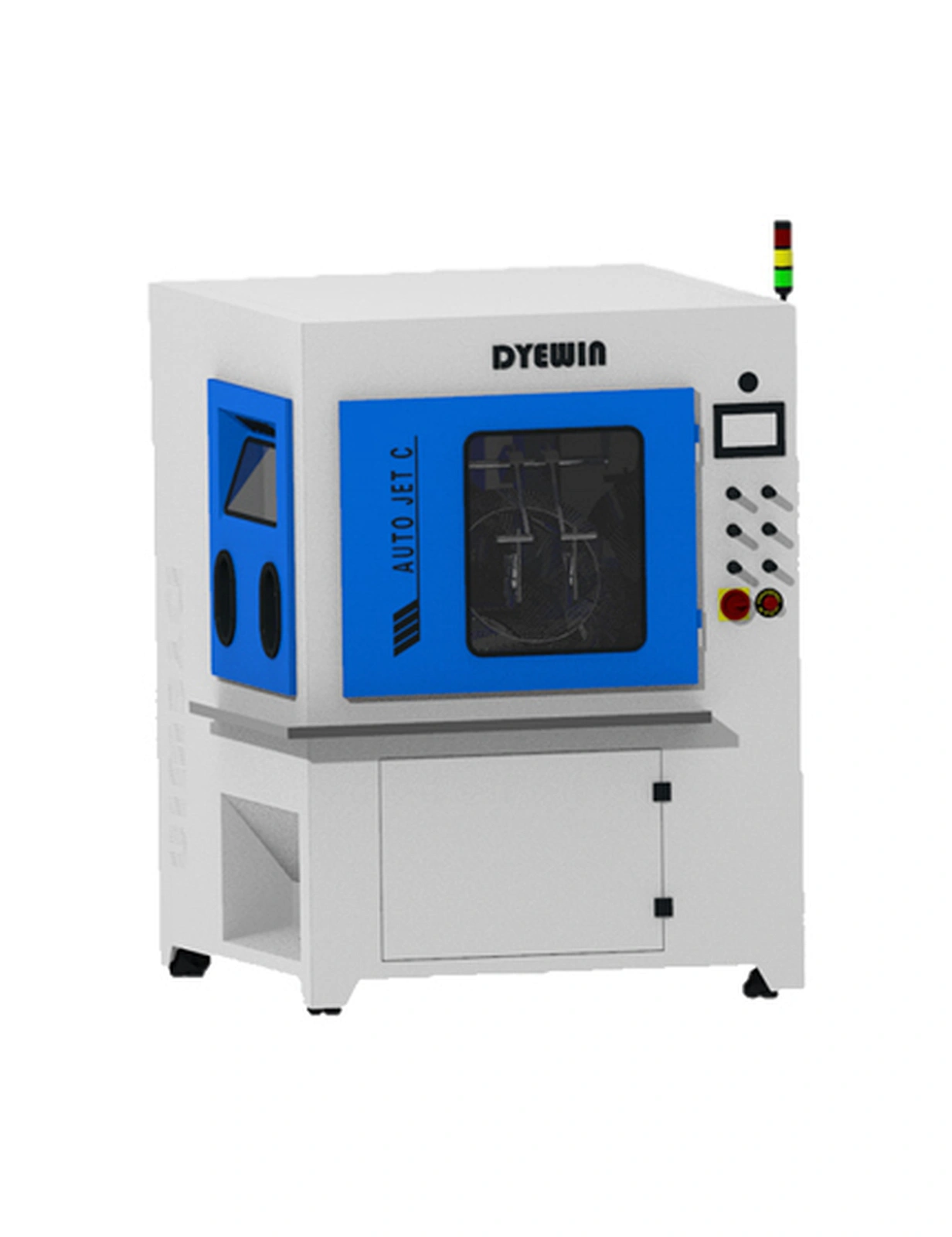

DYEWIN AUTO-JET C Explosion-proof Automatic Depowdering system
AUTO-JET C
AUTO-JET C explosion-proof automatic powder removal equipment SLS, MJF and other professional powder removal equipment for powder 3D printing parts can automatically remove powder in batches with high efficiency, which can greatly improve powder removal efficiency and reduce cost. The device is operated by touch screen and displayed by digital parameters to improve the intelligence of the device and the accuracy of powder cleaning . Equipped with 70L basket to handle more 3D printing parts
Quantity
Technical advantages:
1. One key to start, manual-automatic integrated
2. Batch automatic removal of 3D printing powder
3. Evenly clean powder and avoid parts damage
4. Pulse filtration, dust filtration is cleaner and more environmentally friendly
5.5-15 minutes a cycle, equivalent to 3-4 manual sandblasting machine processing speed, high efficiency
6. The equipment adopts explosion-proof parts to greatly improve the safety of powder cleaning process

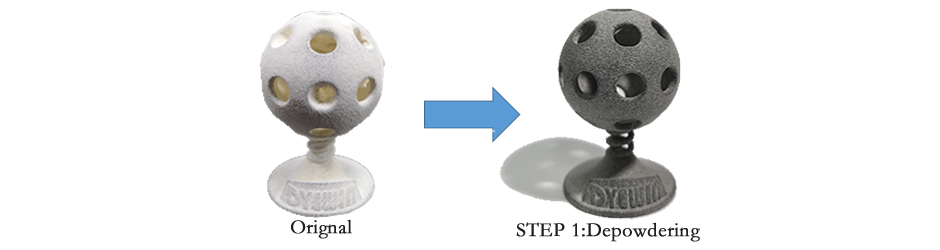

Post-Processing:
Technical Specifications:
| Machine Type | AUTO-JET C |
| Sand Blasting Material | Glass Bead |
| Depowdering Cycle Time | 5-15min |
| Depowdering capacity per run | Up to 75% of EOS P396 or HP MJF Fusion 4200 full build job |
| Rotating basket Volume | 70L |
| Working Space Size | 1120*980*1230mm |
| Machine Size | 1480*1580*1880mm |
| Machine Weight | 300KG |
| Auto-Borcadid Nozzles | 2 pcs |
| Manual-Borcadid Nozzles | 1 pcs |
| Explosion-proof Ionized Jet Stick | 2 pcs |
| Hi-Speed Nozzles | 1 pcs |
| Compressed Air Requirement | Dry/No Oil |
| Compressed Air Consumption | ≥2.4m3/min |
| Machine Capacity | 1.1KW |
| Power Requirement | 220V~50Hz |
