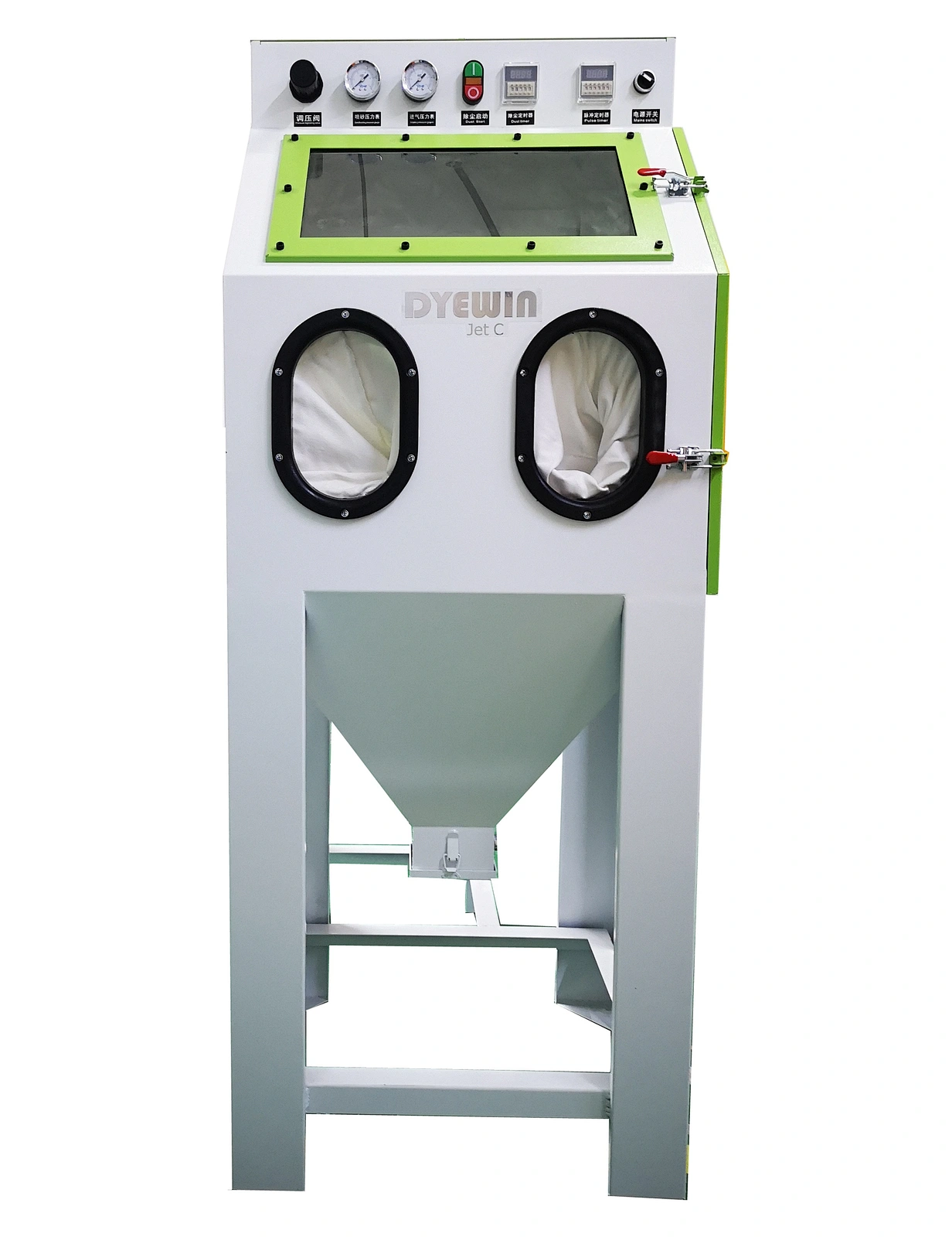

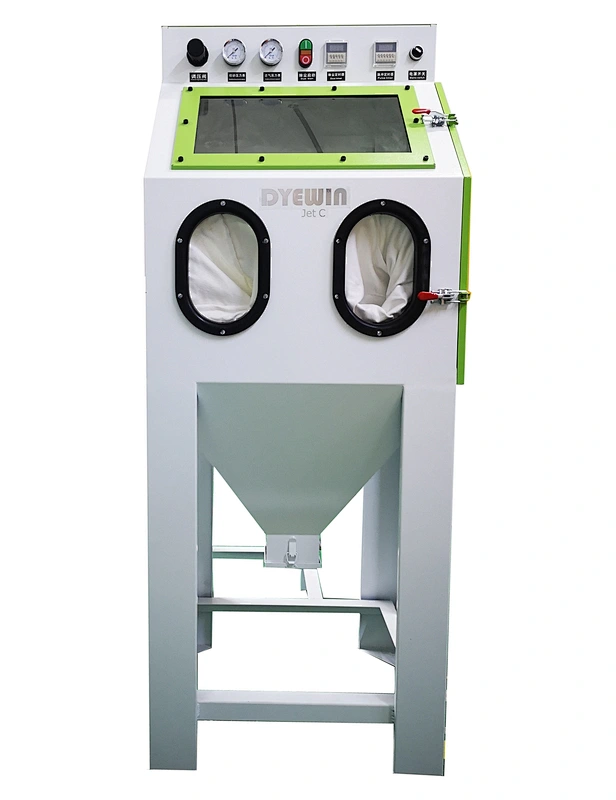

DYEWIN JET C Manual Depowdering Machine
JET-C
JET C is suitable for powder removal for SLS,MJF 3D printing Parts. It is also suitable for desktop SLS printers such as FUSE1 due to its small size.
Quantity
First.Functional Features:
Second.Specifications:
Optional models:
Option 1: JET C-L has a larger size, suitable for handling large pieces, device size: 900*1220*1600mm; Chamber size: 900*800*650mm.
Option 2: JET C-LEX explosion-proof model, added explosion-proof ion rod; Same size as JET C-L.
Get File----->Please Click Here
- Sand blasting speed is fast, can quickly remove the surface powder.
- for air compressor low requirements, small volume, suitable for enterprise R&D department, schools and other non-production units to use.
- Adopt pulse filter element, one key dust removal. Environmental protection and pollution-free, airtight working cabin operation, can be put in dust-free workshop for use.
- Suitable for printing technology: SLS,MJF,SLM, etc.
- Optional separator: can make the powder and sand perfectly separated, improve the utilization rate of sand.
- Suitable for desktop level SLS 3D printer, such as FUSE1,LISA.
Second.Specifications:
| Blasting parameters | Amount of sand | 2-3kg/min |
| Blasting speed | 10-50m/s | |
| Nozzle material | High density boron carbide | |
| Number of sand gun | 1pcs | |
| Dimensions & Specifications | Equipment size | 600*920*1560mm |
| Workshop size | 600*500*500mm | |
| Equipment weight | 80kg | |
| Power supply | Voltage | 220v~50Hz |
| Power | 400w | |
| Resources | Compressed air | Dry, oiled compressed air;The air supply is greater than 1m³/min |
| Maintenance | One year service and technical support |
Optional models:
Option 1: JET C-L has a larger size, suitable for handling large pieces, device size: 900*1220*1600mm; Chamber size: 900*800*650mm.
Option 2: JET C-LEX explosion-proof model, added explosion-proof ion rod; Same size as JET C-L.
