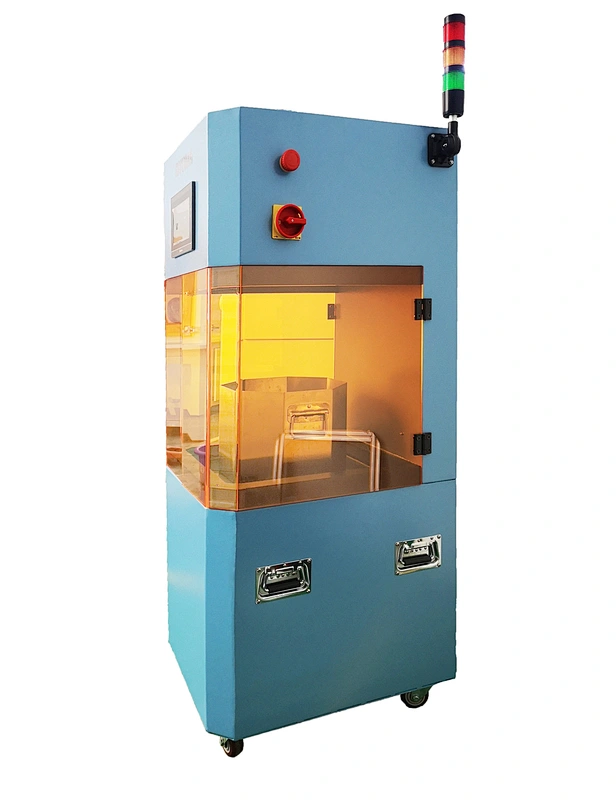

DYEWIN Mp-30 Polishing Machine
MP-30
Mp-30 is a post-processing equipment suitable for metal 3D printing, mainly used for polishing metal surface.
Quantity
Function Features：
Specifications:
Surface improvement:
Roughness: The surface roughness can be improved 1-4μm depending on the material
Surface effect: bright surface and atomizing surface effect can be realized

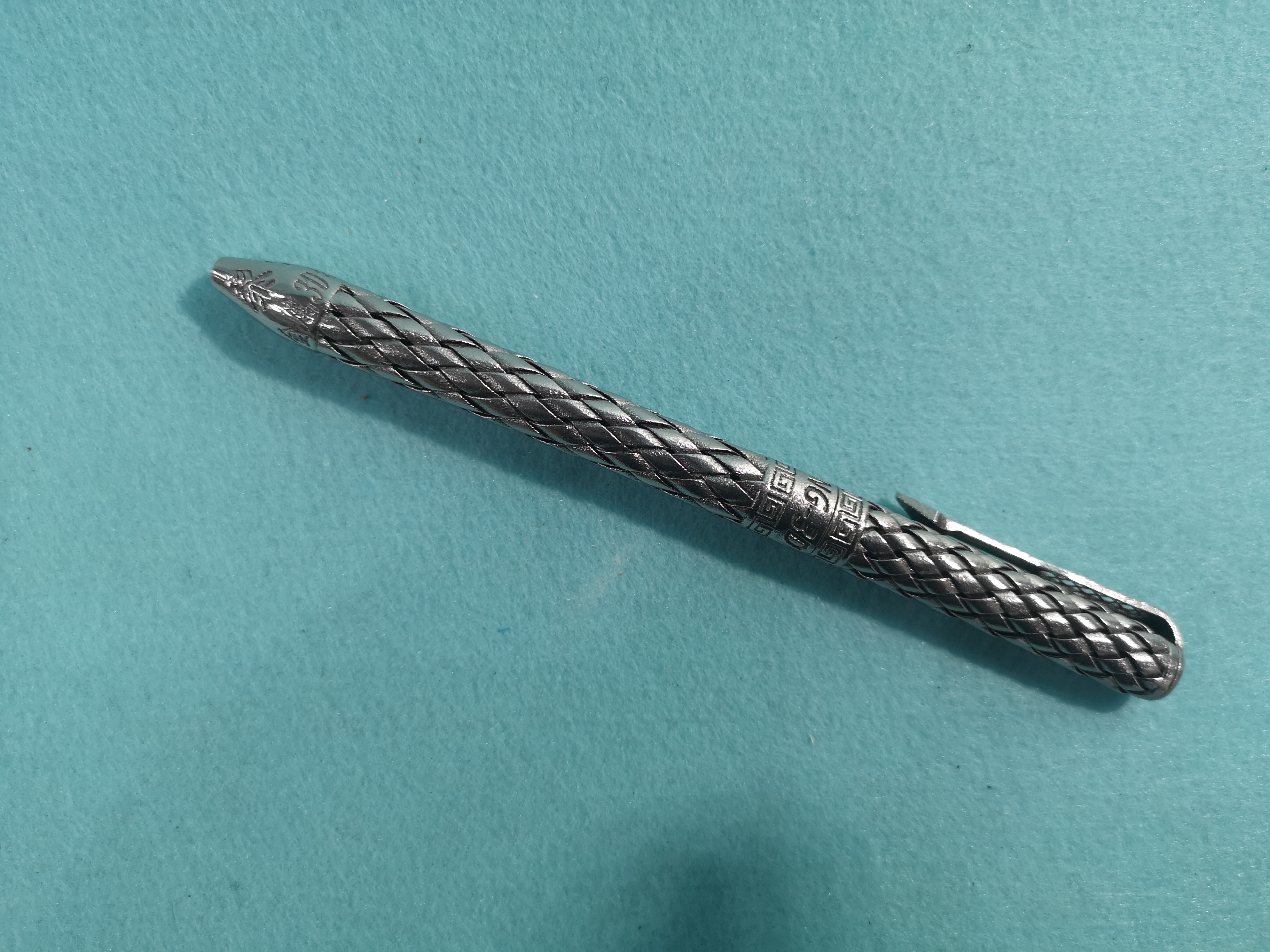

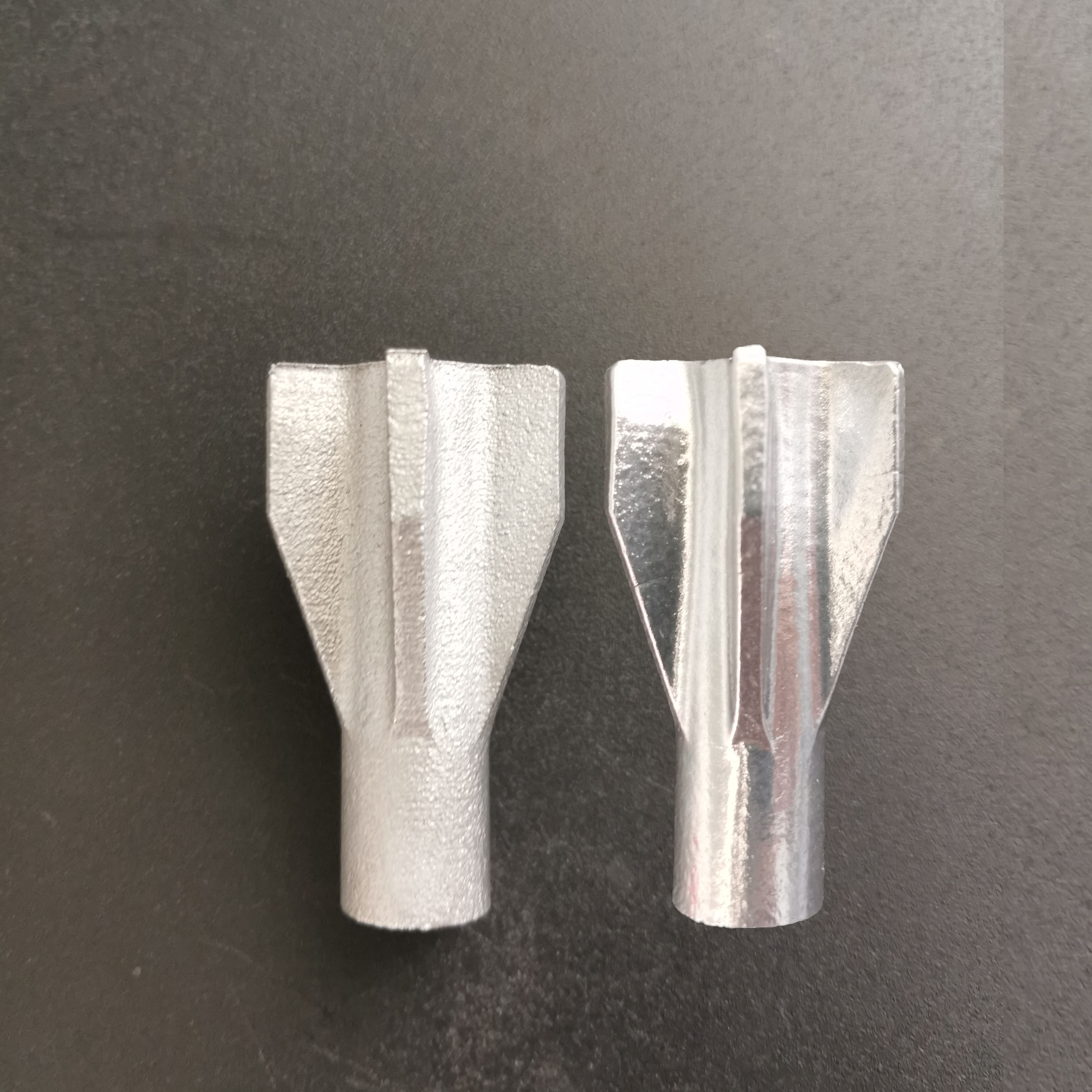

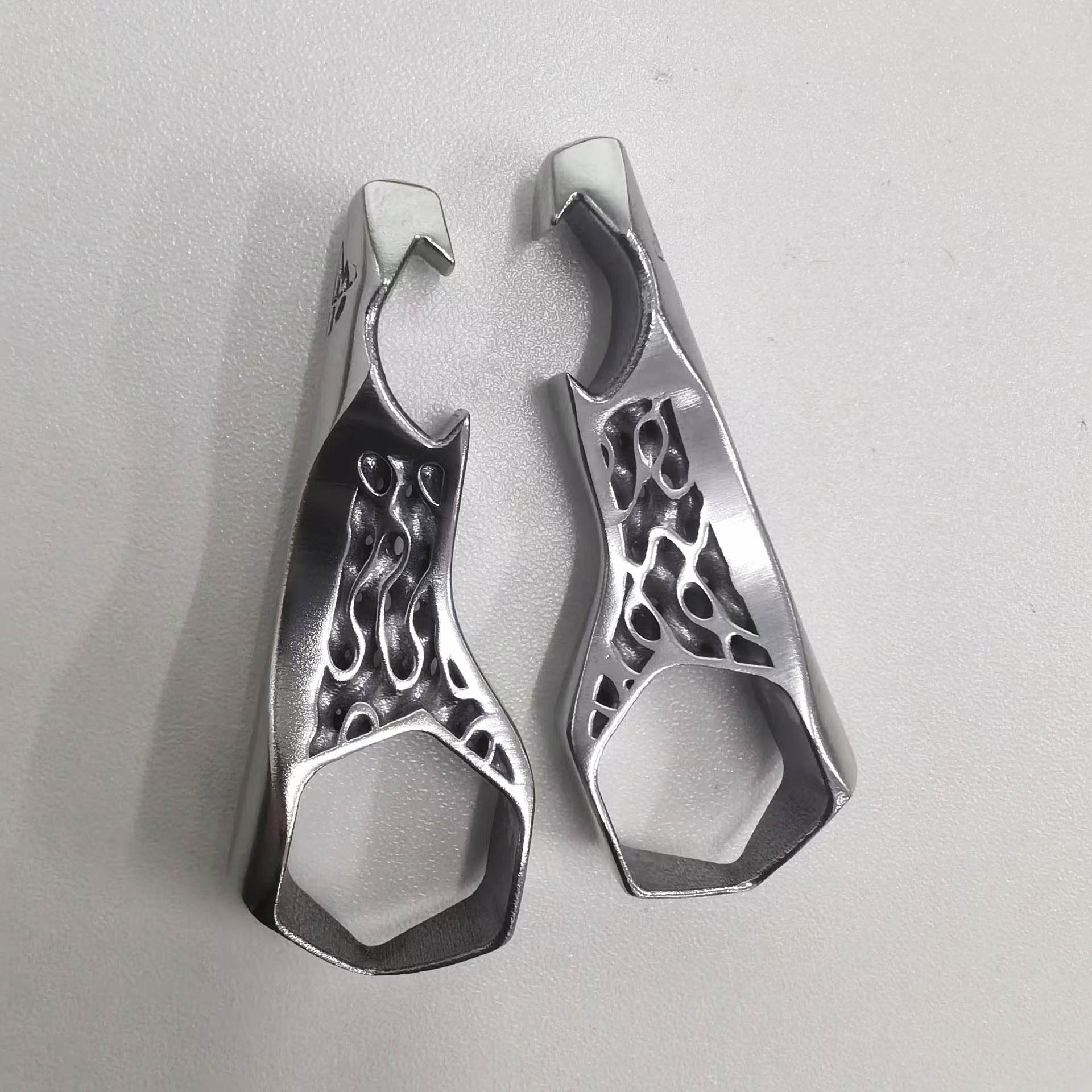

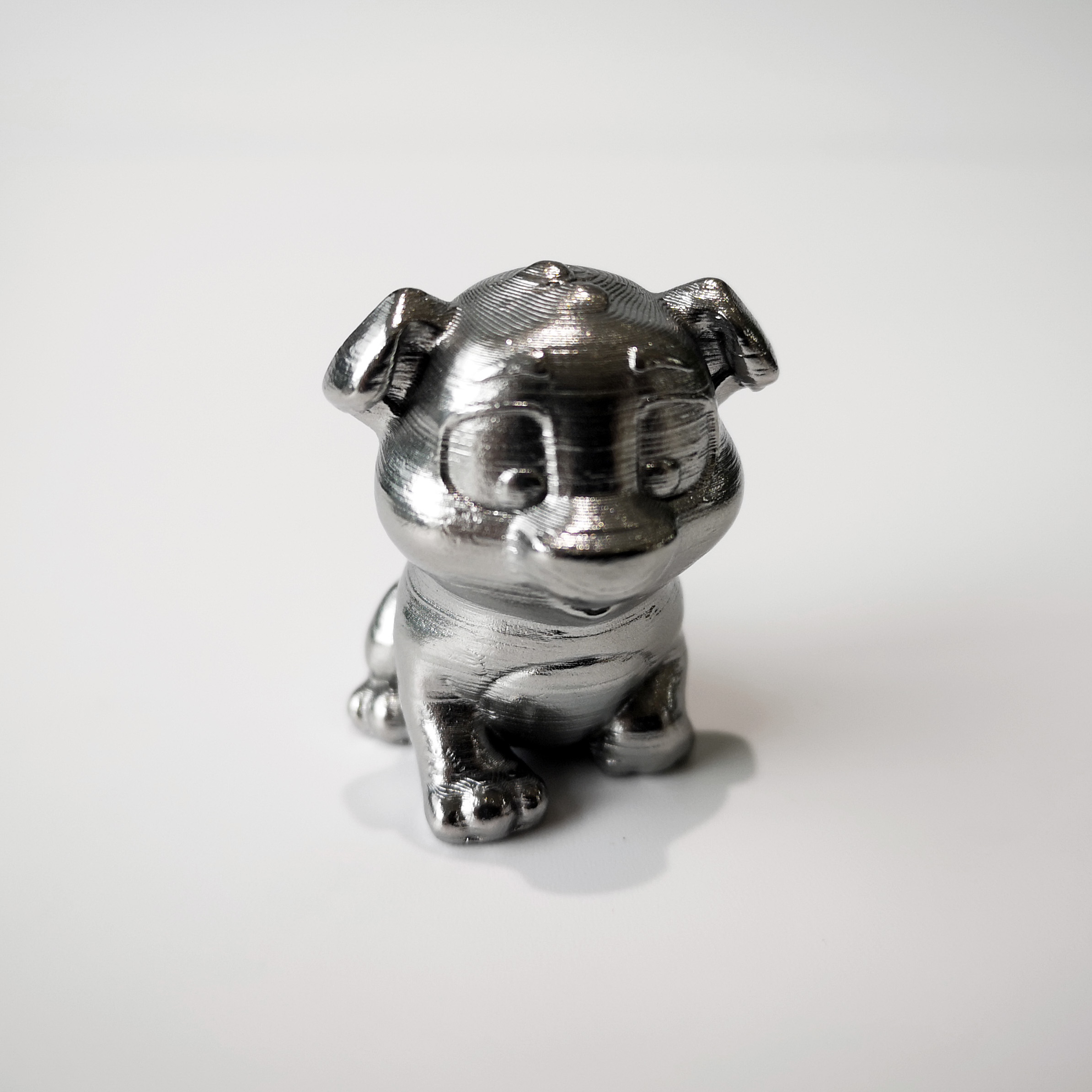

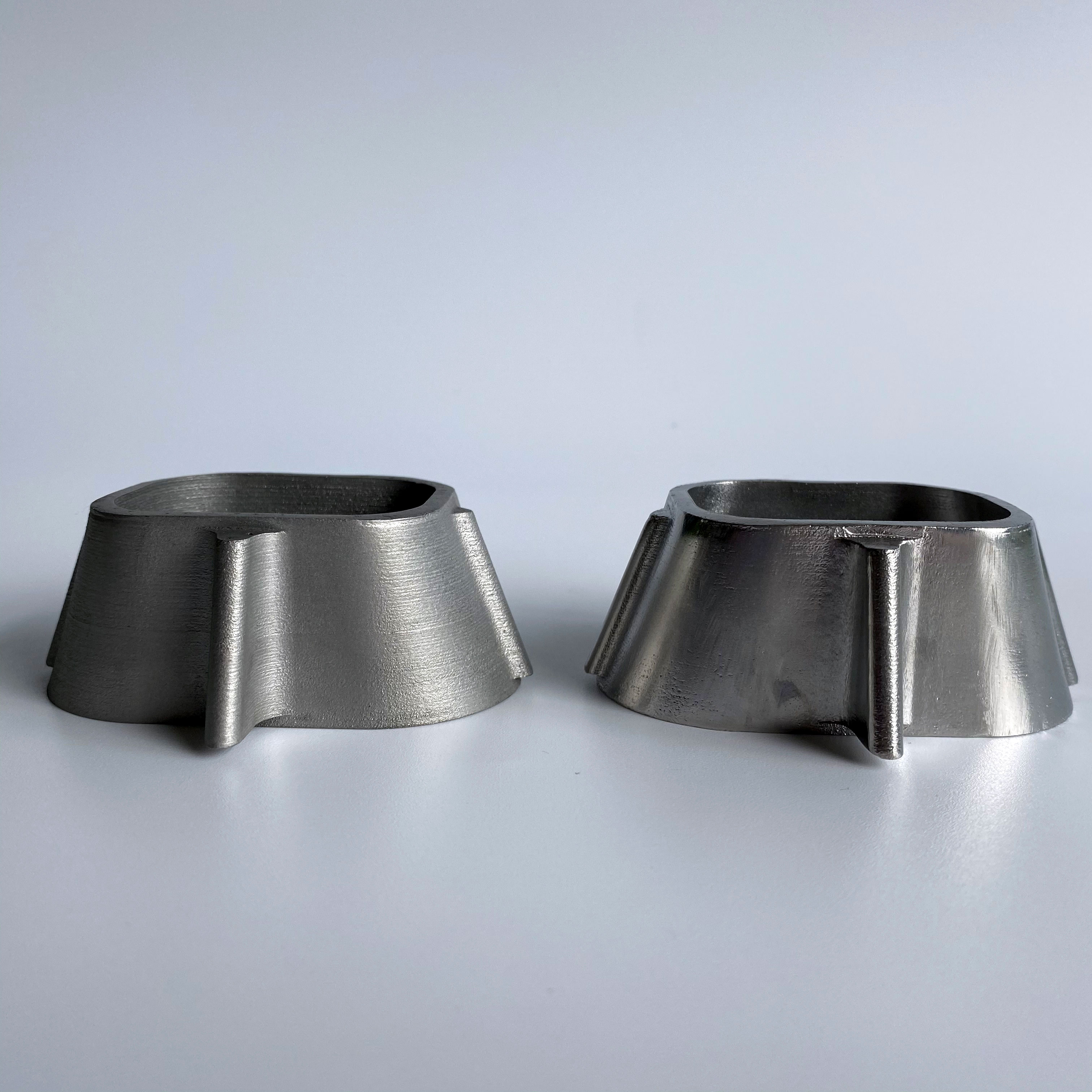

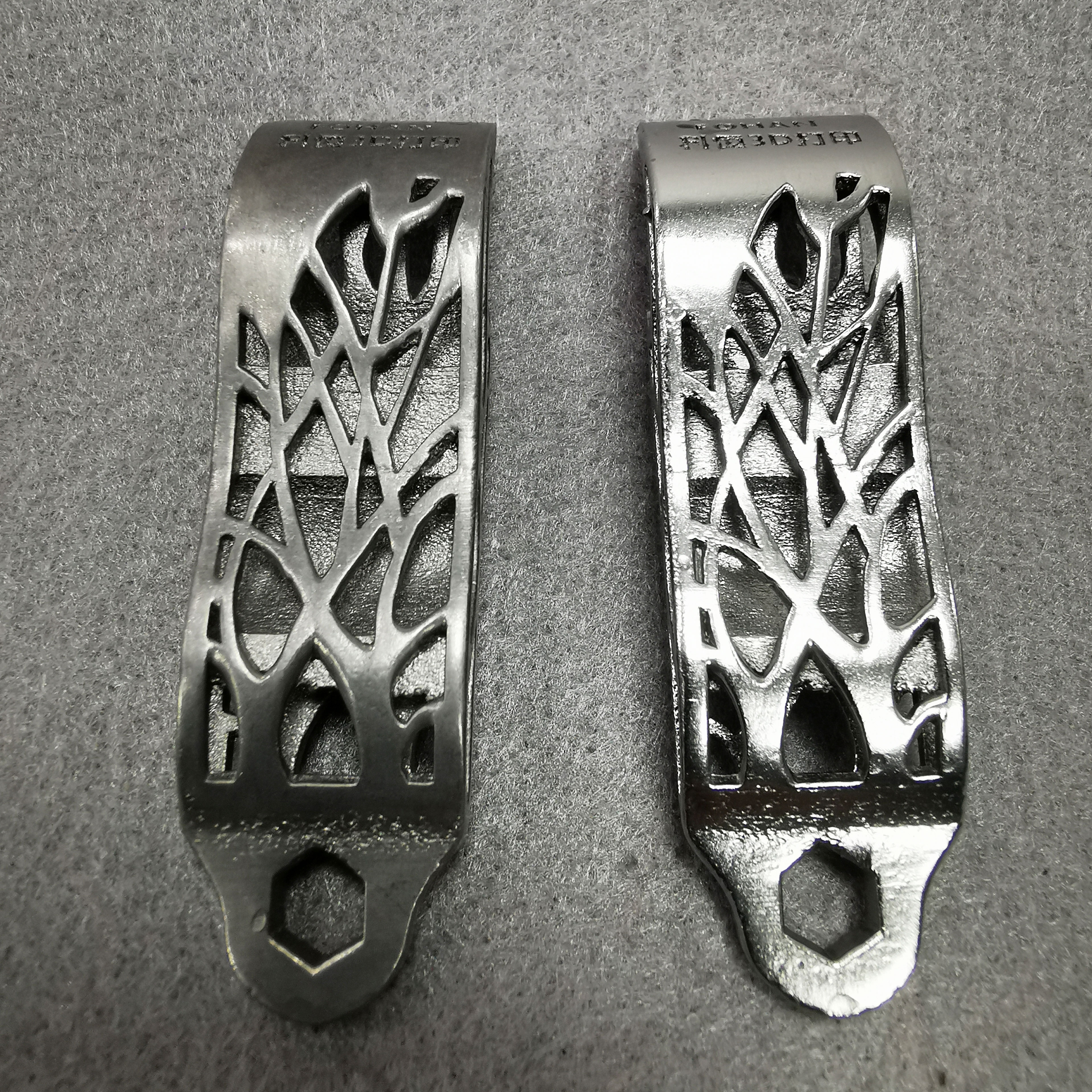

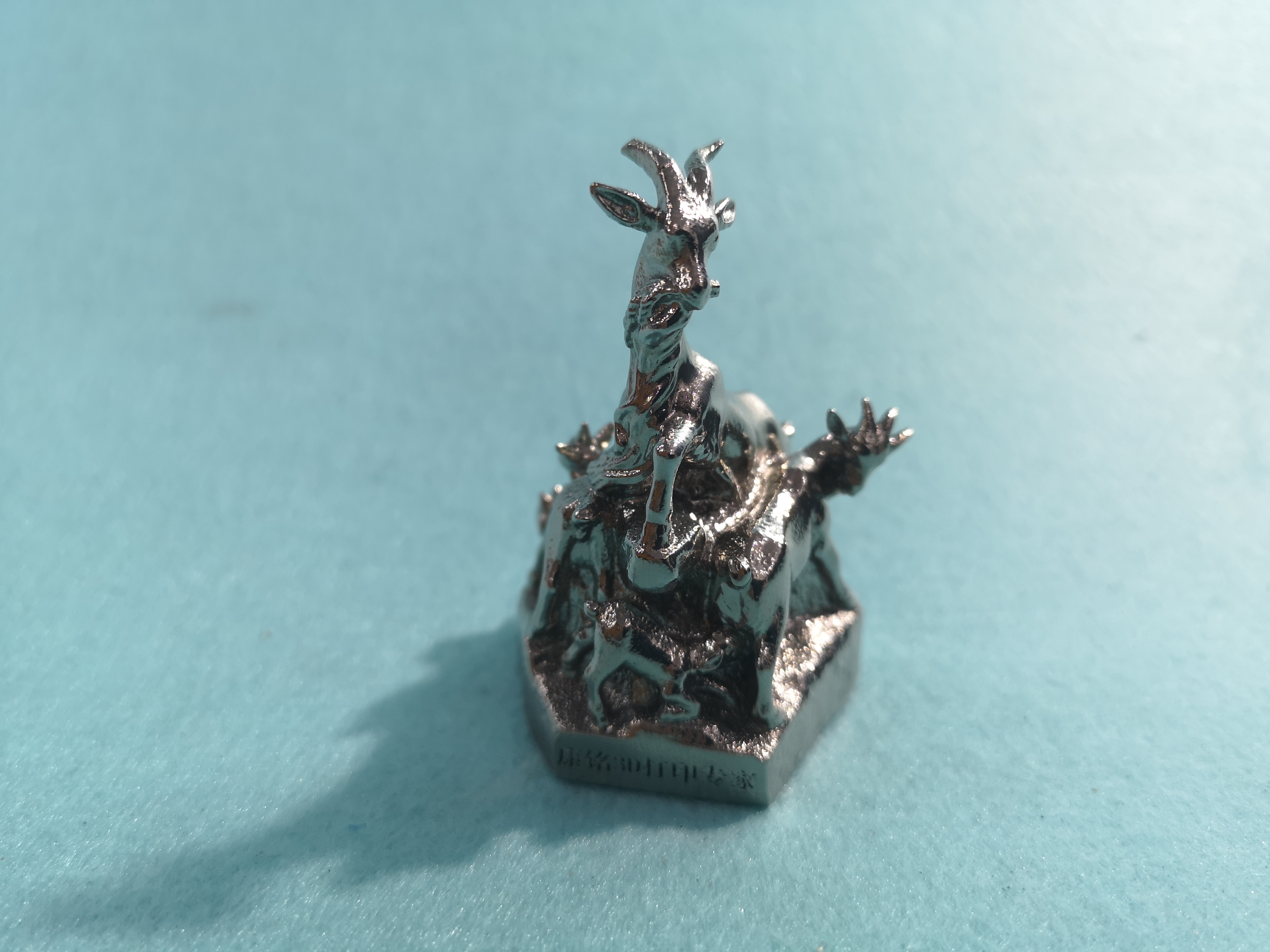

Metal polished effect:
Get File----->Please Click Here
- Fully intelligent automatic polishing, parameters can be selected according to the material.
- High polishing efficiency, can batch polish 3D printed parts in 10-30 minutes.
- Suitable for all kinds of shape parts, small pieces, inner holes, dead corner can be polished and the effect is good.
- No need to customize special fixture, easy to use.
- Post-processed 3D-printed parts have high finish and brightness.
- Suitable material: aluminum alloy, stainless steel, die steel and other metal 3D printing materials.
- Special polishing material is very durable, for enterprises to greatly reduce the cost.
- After removing the support, the product can be polished directly without sandblasting, which is a perfect substitute for sandblasting process
Specifications:
| Polishing parameters | Polishing time | 10-30min |
| Polishing material | 1kg | |
| Dimensions & Specifications | Equipment size | 542*680*1500mm |
| Polished container size | 420*420*220 | |
| Equipment weight | 70kg | |
| Power supply | Voltage Power | 220V~50Hz |
| Power | 2.3KW | |
| Maintenance | One year service and technical support |
Surface improvement:
Roughness: The surface roughness can be improved 1-4μm depending on the material
Surface effect: bright surface and atomizing surface effect can be realized
Metal polished effect:
