Compared with DW-50,DW-20 models not only retain DW-50 dyeing advantages, but also have smaller size, lower cost and higher efficiency.It is very suitable for glasses,gifts,crafts and other small batch,color variety demand products.

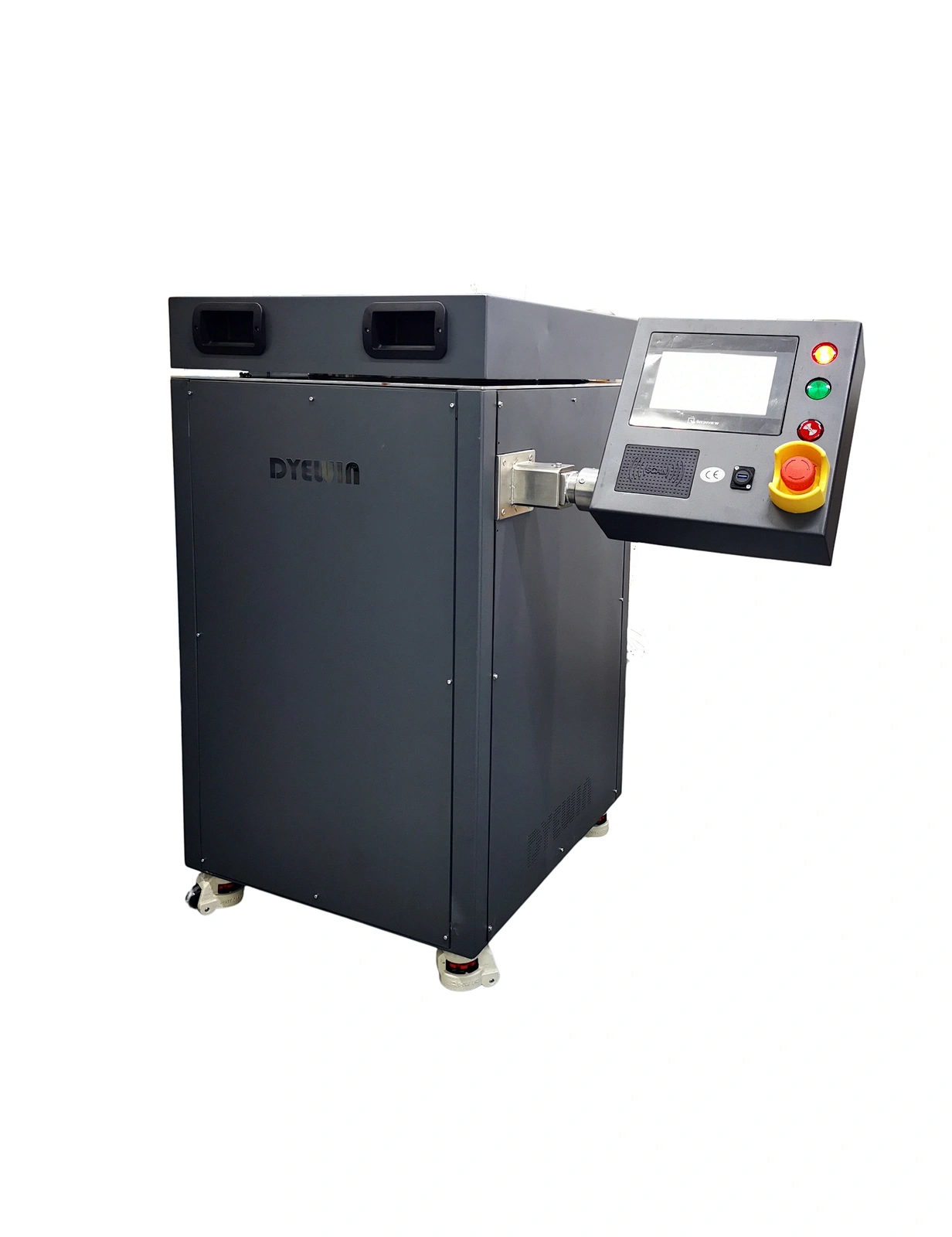

DW-20 intelligent dyeing machine is a professional equipment for dyeing polymer 3D printed parts, with 20L dyeing volume. With one key operation, the whole dyeing process can be automated without manual intervention. The whole dyeing process is highly efficient and the cleaned parts can be taken out after the process is completed.Through the control of high temperature, high pressure and temperature rise, the dye can fully enter into the 3D printing parts to ensure the uniformity and consistency of parts dyeing.
Compared with DW-50,DW-20 models not only retain DW-50 dyeing advantages, but also have smaller size, lower cost and higher efficiency.It is very suitable for glasses,gifts,crafts and other small batch,color variety demand products.

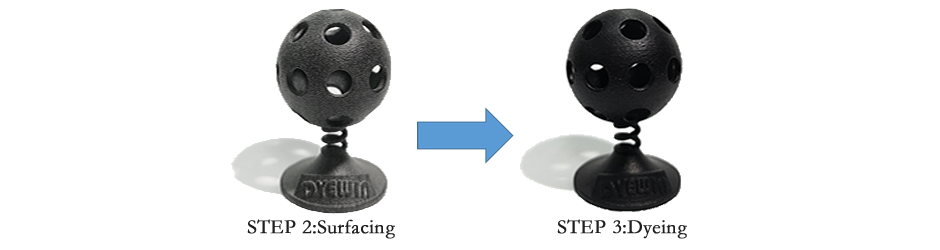

Post-Processing:

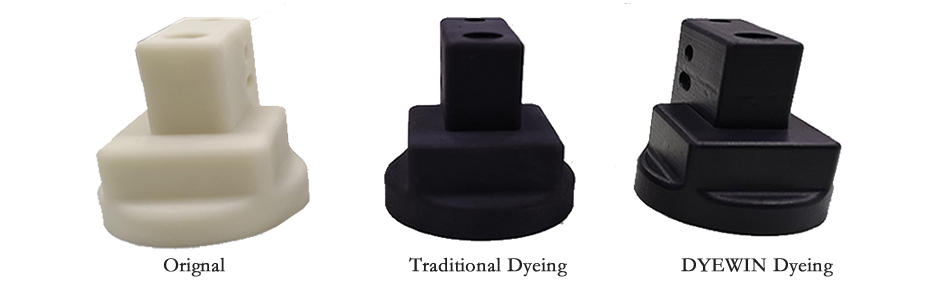

Compared With Traditional Dyeing:
Technical Specifications:
| Machine Type | DW-20 |
| Dyeing Cycle Time | 1-1.5 Hours |
| Dyeing Capacity Per Run | Up to 30% of EOS P396 or 50% of HP MJF Fusion 4200 build job |
| Dyeing Volume | 20L |
| Dyeing Depth | 0.1-0.2mm |
| Dyeing Temperature | 110-130℃ |
| Standard Color | 12 color (HP MJF Only For 7 Color) |
| Maximal Part Size | φ280*200mm |
| Support Technology | SLS/MJF/SLA |
| Power Requirement | 3P 380V~50Hz |
| Machine Capacity | 5KW |
| Resources | Dry and No Oil compressed air 2bar |
| Soft water recommended | |
| Machine Size | 750*670*950mm |
