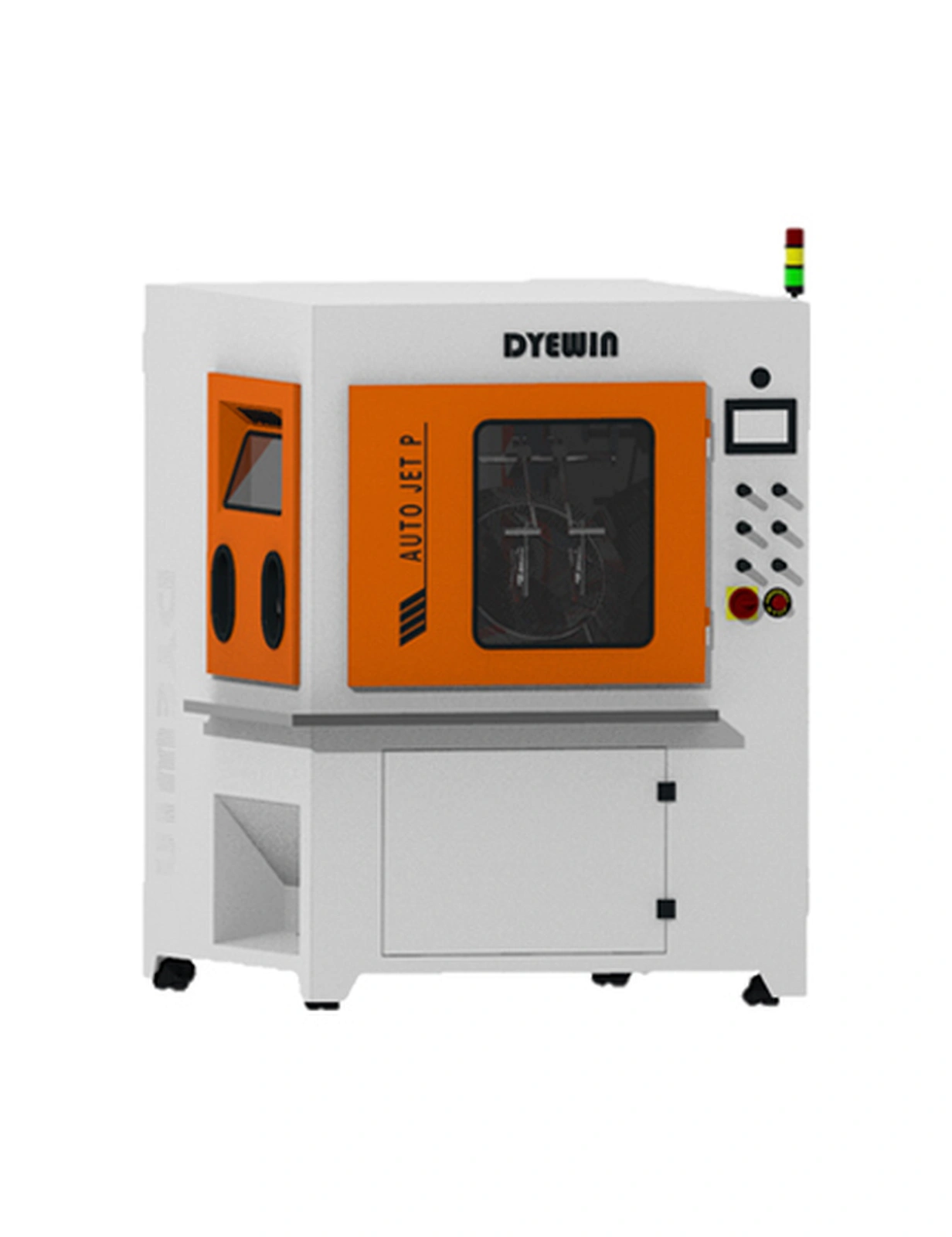

DYEWIN AUTO-JET P Explosion-proof Automatic Surfacing System
AUTO-JET P
AUTO-JET P automatic explosion-proof surface treatment equipment for polymer 3D printing professional surfacing equipment, through jet DYEWIN special sand is effectively closed pores on the surface of the printing, visual effects, improve surface wear resistance and gloss, is an important part of the dyeing quality assurance .The device is operated by touch screen and displayed by digital parameters to improve the intelligence of the device and the precision of surfacing .It is also equipped with 70L basket to handle more 3D printing parts
Quantity
1. The surface roughness is reduced by 50%, and the surface abrasion and gloss of the parts are greatly improved
2. Filter element dust removal, effectively filter dust cleaner and more environmentally friendly
3. High pressure ionization can effectively remove static electricity from working chamber and workpiece surface
4. Equipped with cyclone separator, it is better to clean impurities and dust in special sand materials, improve material utilization rate and reduce cost
5. Effectively handle PA12, PA11, PA6, TPU and other materials
Post-Processing:
Technical Specifications:
| Machine Type | AUTO-JET P |
| Sand Blasting Material | DYEWIN Special Blasting Material |
| Surfacing Cycle Time | 5-15min |
| Surfacing Capacity Per Run | Up to 75% of EOS P396 or HP MJF Fusion 4200 full build job |
| Rotating basket Volume | 70L |
| Working Space Size | 1120*980*1230mm |
| Machine Size | 1480*1580*1880mm |
| Machine Weight | 300KG |
| Auto-Borcadid Nozzles | 2 pcs |
| Manual-Borcadid Nozzles | 1 pcs |
| Auto-Ionized Jet Nozzles | 2 pcs |
| Hi-Speed Nozzles | 1 pcs |
| Compressed Air Requirement | Dry/No Oil |
| Compressed Air Consumption | ≥2.4m3/min |
| Machine Capacity | 1.1KW |
| Power Requirement | 220V~50Hz |
Surface effect:
Roughness: The roughness of the HP 4200 face down can be treated from Ra 9 to Ra5, and other surfaces can be treated from Ra16 to RA8-9. EOS SLS technology prints can be processed from Ra11 to RA5-6.

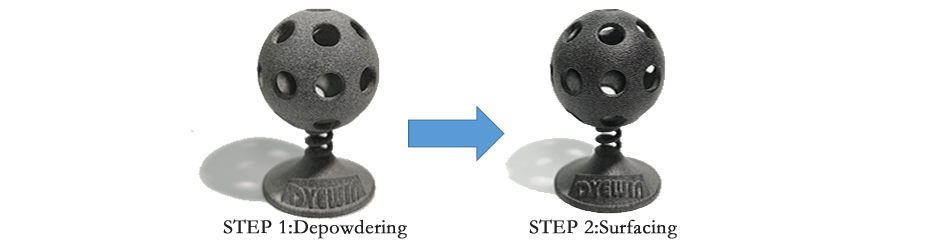

surface treatment effect:
