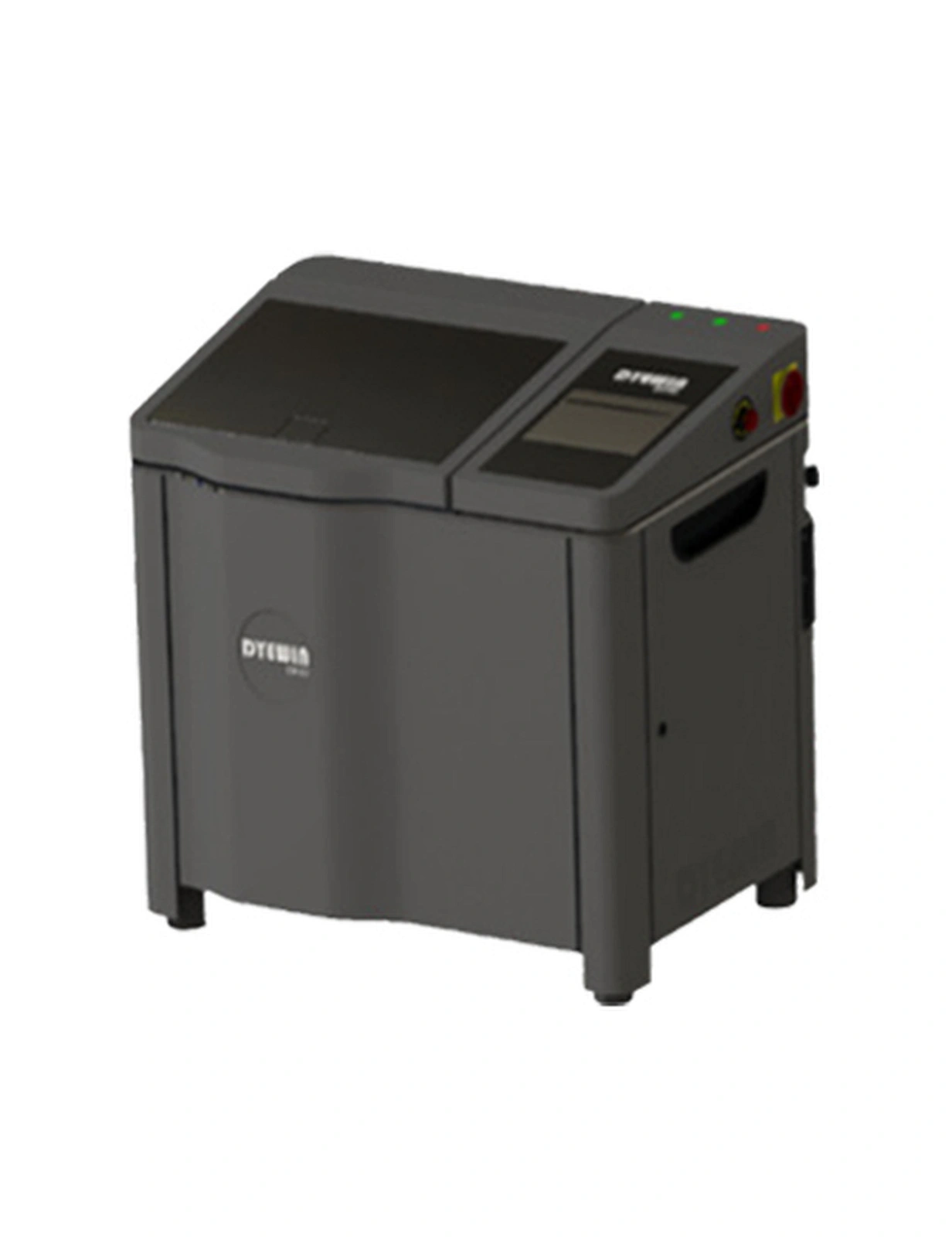

DYEWIN DW-50 Intelligent Dyeing System
DW-50
DW-50 intelligent dyeing machine is a professional equipment for dyeing polymer 3D printing parts.The machine controls one key operation through the touch screen, and the whole dyeing process is automated. No manual intervention is needed in the process. The whole dyeing process is highly efficient in automatic dyeing, and clean parts can be taken out after the process is completed.Through the control of high temperature, high pressure and temperature rise, the dye can fully enter the 3D printing parts to ensure the printing parts and the uniformity and consistency of parts dyeing.DW-50 is equipped with 50L dyeing volume, suitable for customers with mass customization needs, such as handplate factory, terminal customers, etc.
Quantity
Technical advantages:
- Self-development dyestuff passed the EU toy safety standard EN71
- Suitable for SLS/MJF/SLA
- Automatic dyeing process without manual intervention
- High color fastness and uniform surface
- RAL and PANTONE colors can be customized

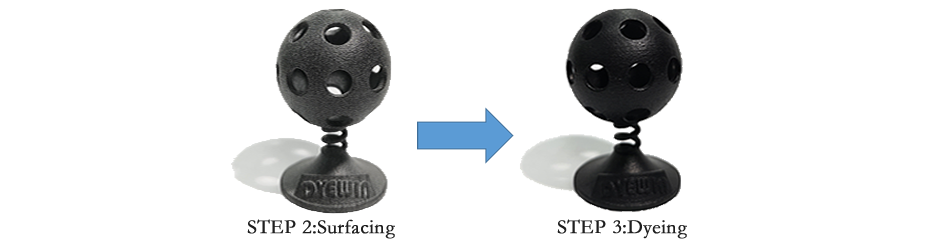

Post-Processing:

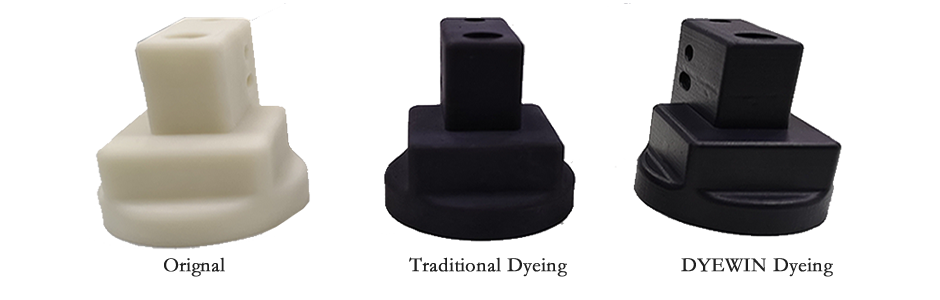

Compared With Traditional Dyeing
Technical Specifications:
| Machine Type | DW-50 |
| Dyeing Cycle Time | 1.5-2.5 Hours |
| Dyeing Capacity Per Run | Up to 75% of EOS P396 or HP MJF Fusion 4200 full build job |
| Dyeing Volume | 25L/37.5L/50L |
| Dyeing Depth | 0.1-0.2mm |
| Dyeing Temperature | 110-130℃ |
| Standard Color | 12 color (HP MJF Only For 7 Color) |
| Maximal Part Size | φ380*300mm |
| Support Technology | SLS/MJF/SLA |
| Power Requirement | 3P 380V~50Hz |
| Machine Capacity | 7KW |
| Resources | Dry and No Oil compressed air 2bar |
| Soft water recommended | |
| Machine Size | 1250*850*1050mm |

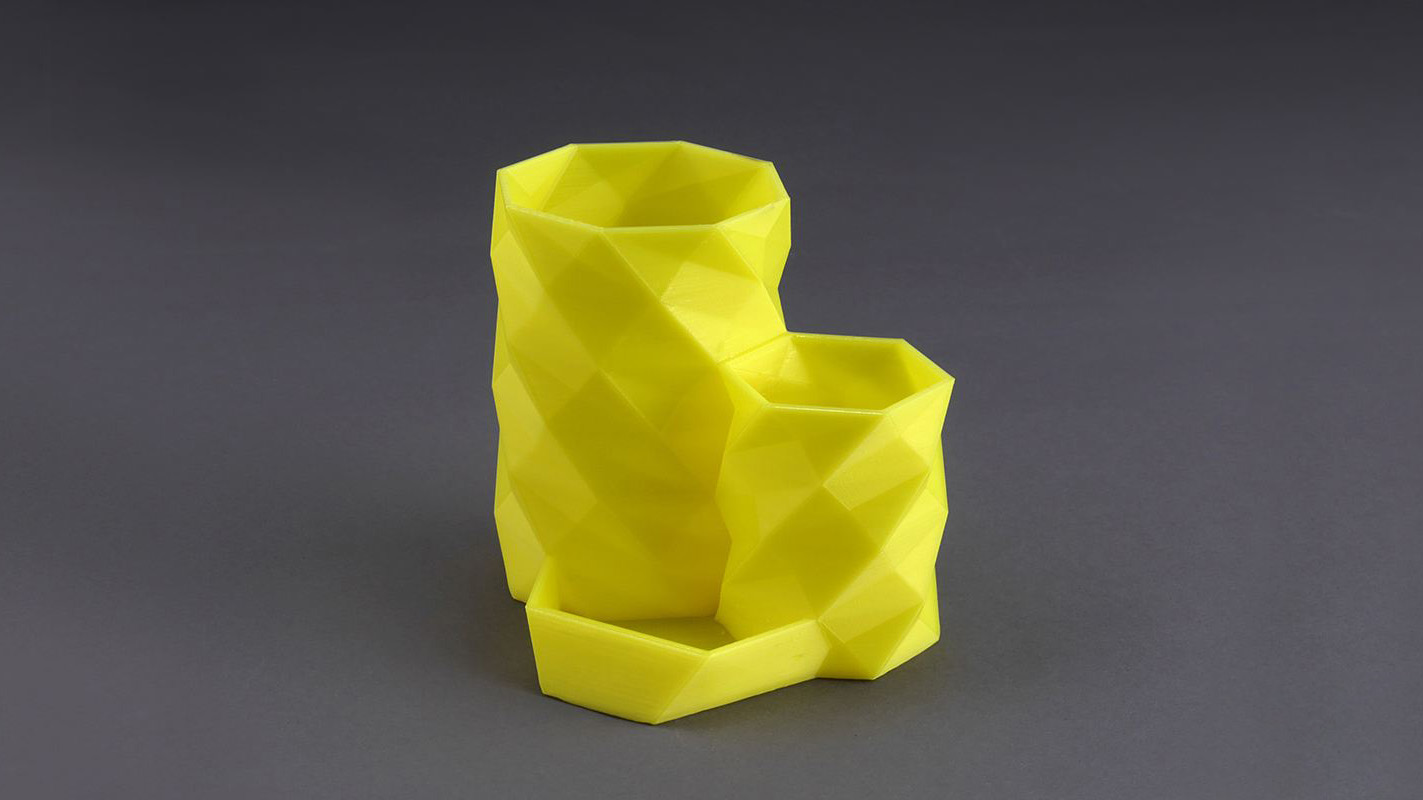

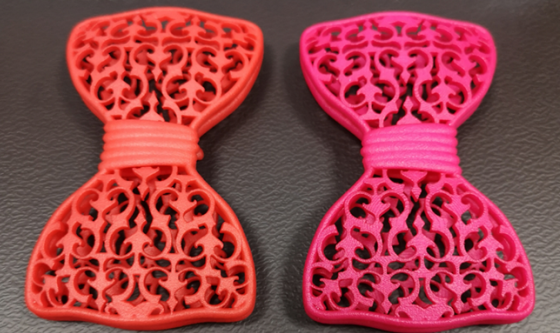

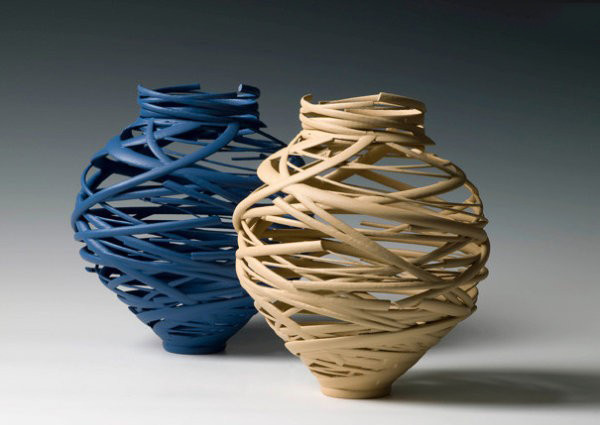

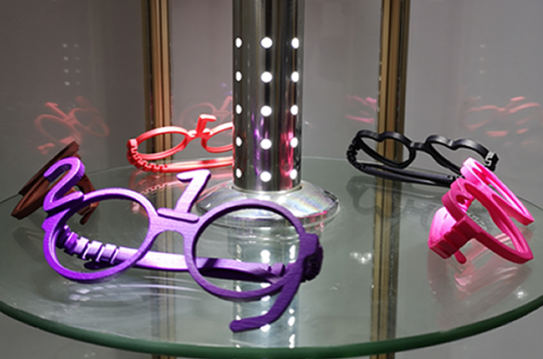

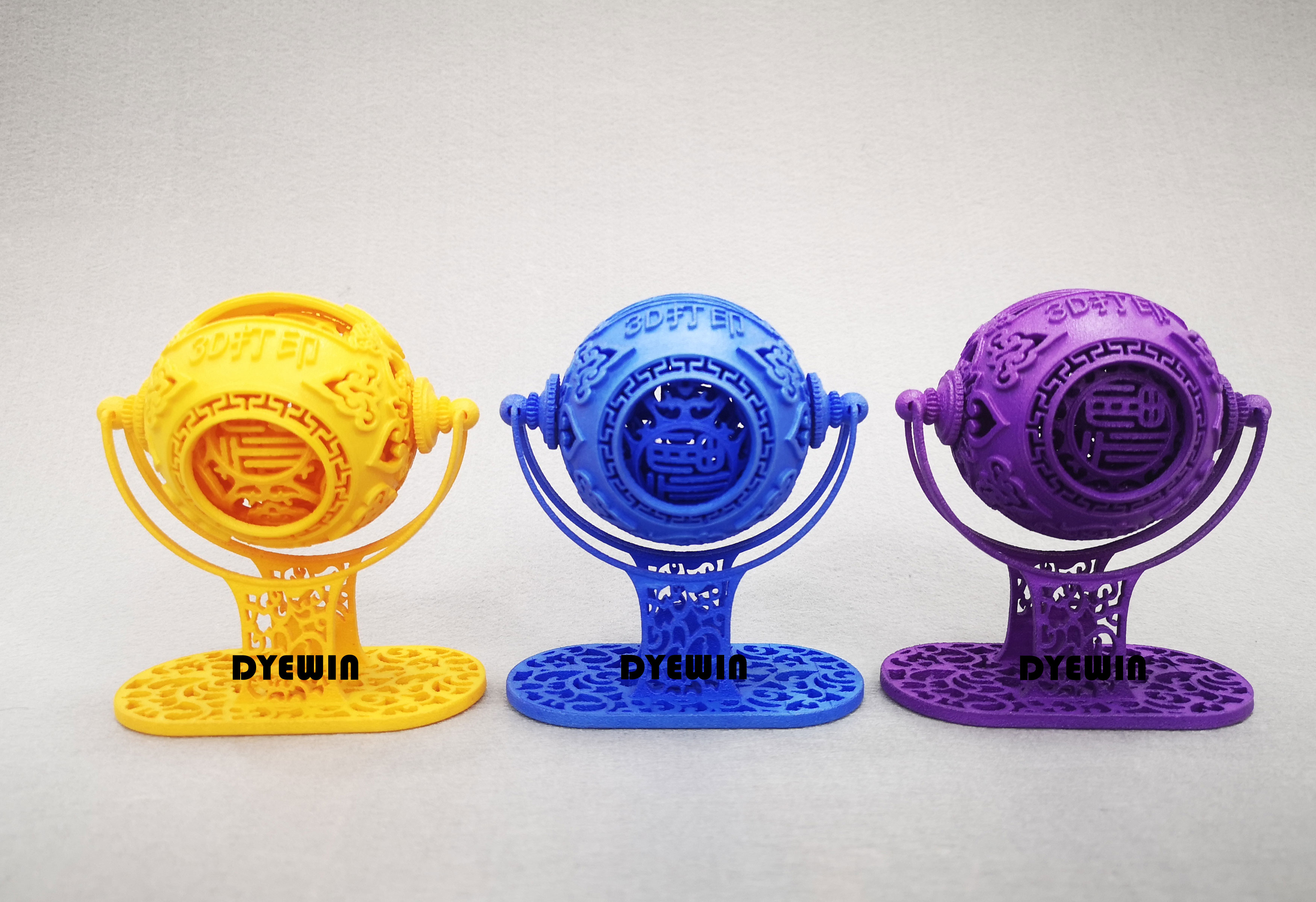

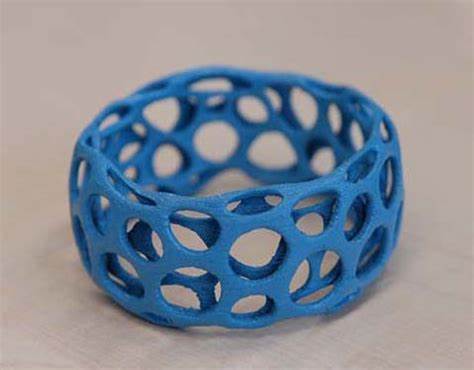

Dyeing effect of white material:

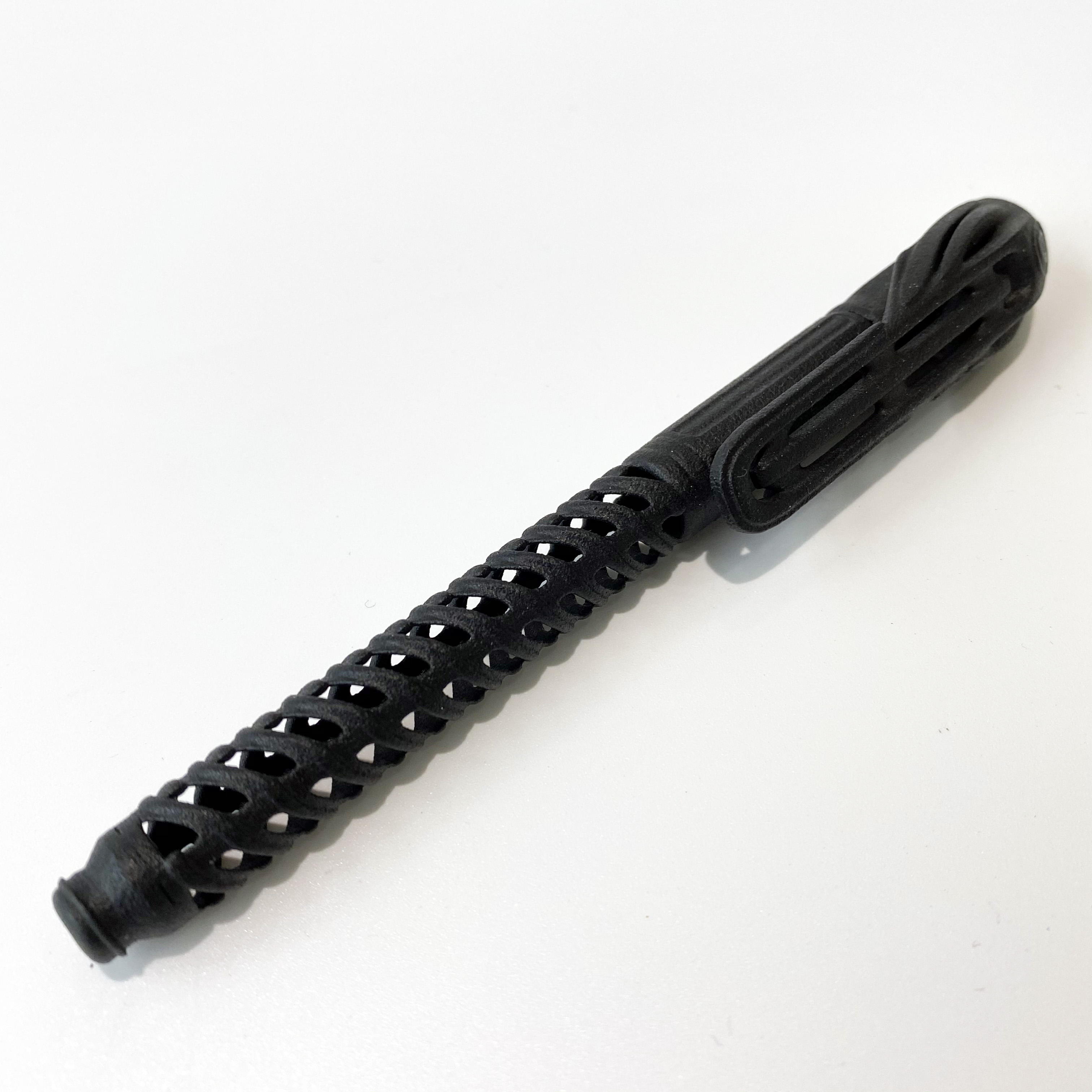

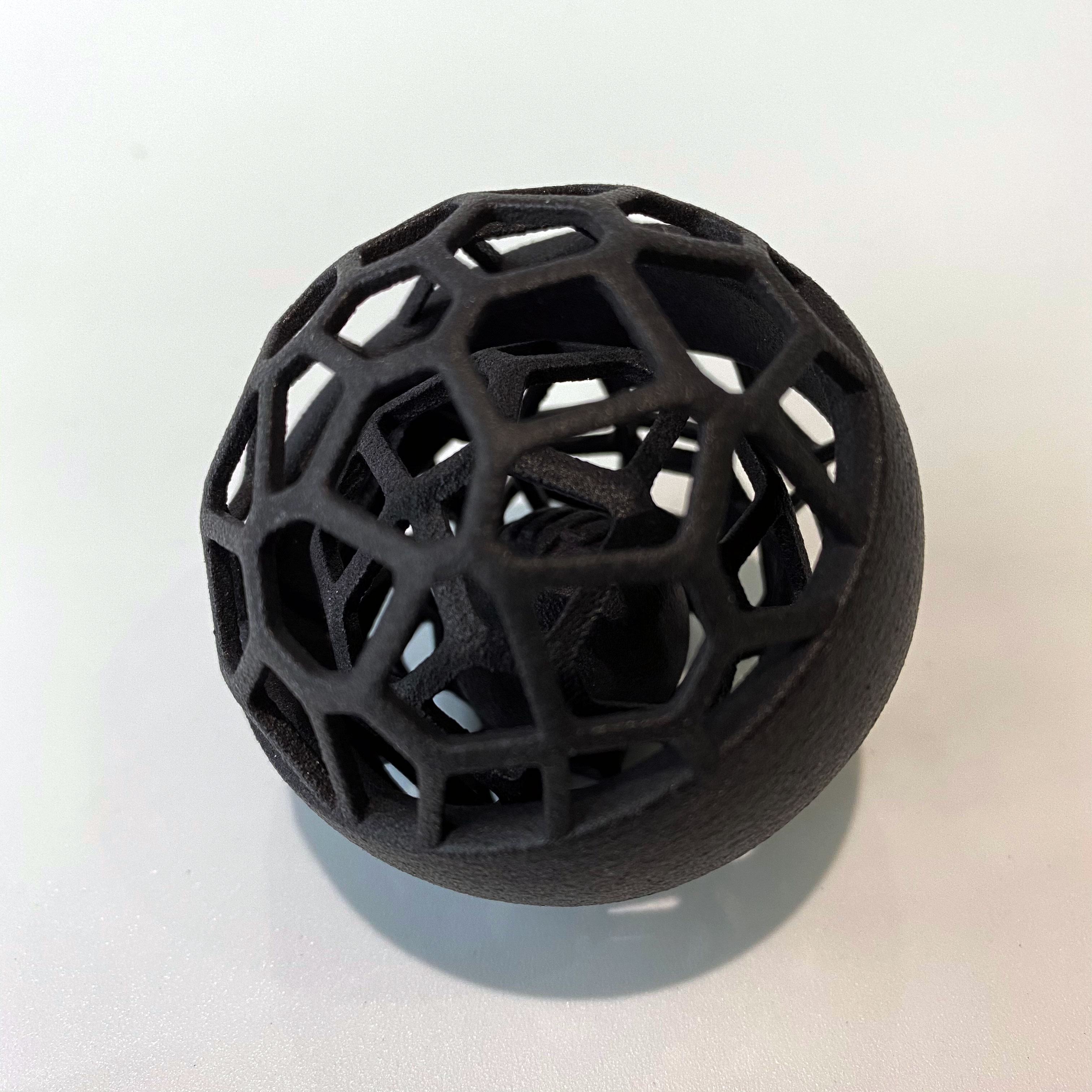

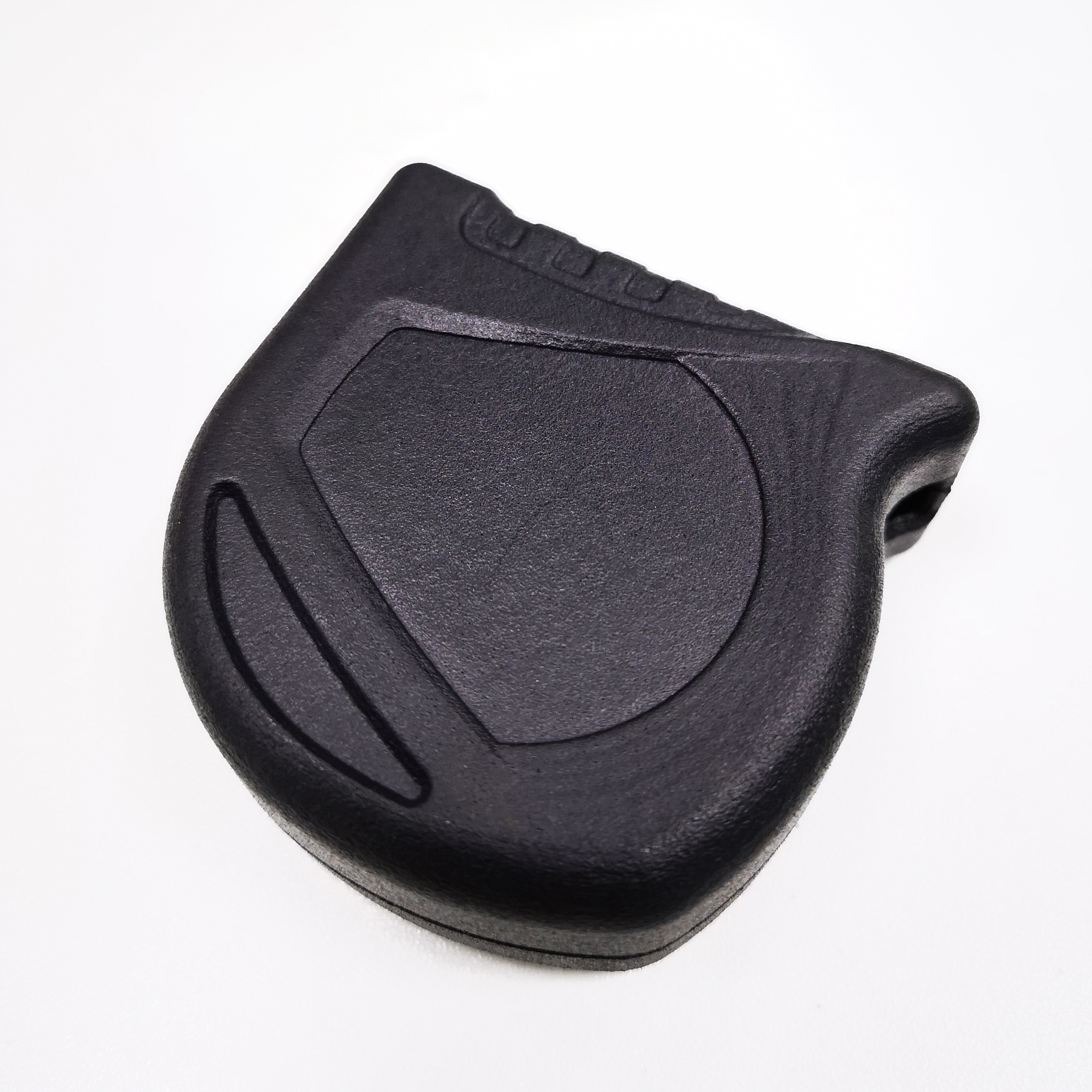

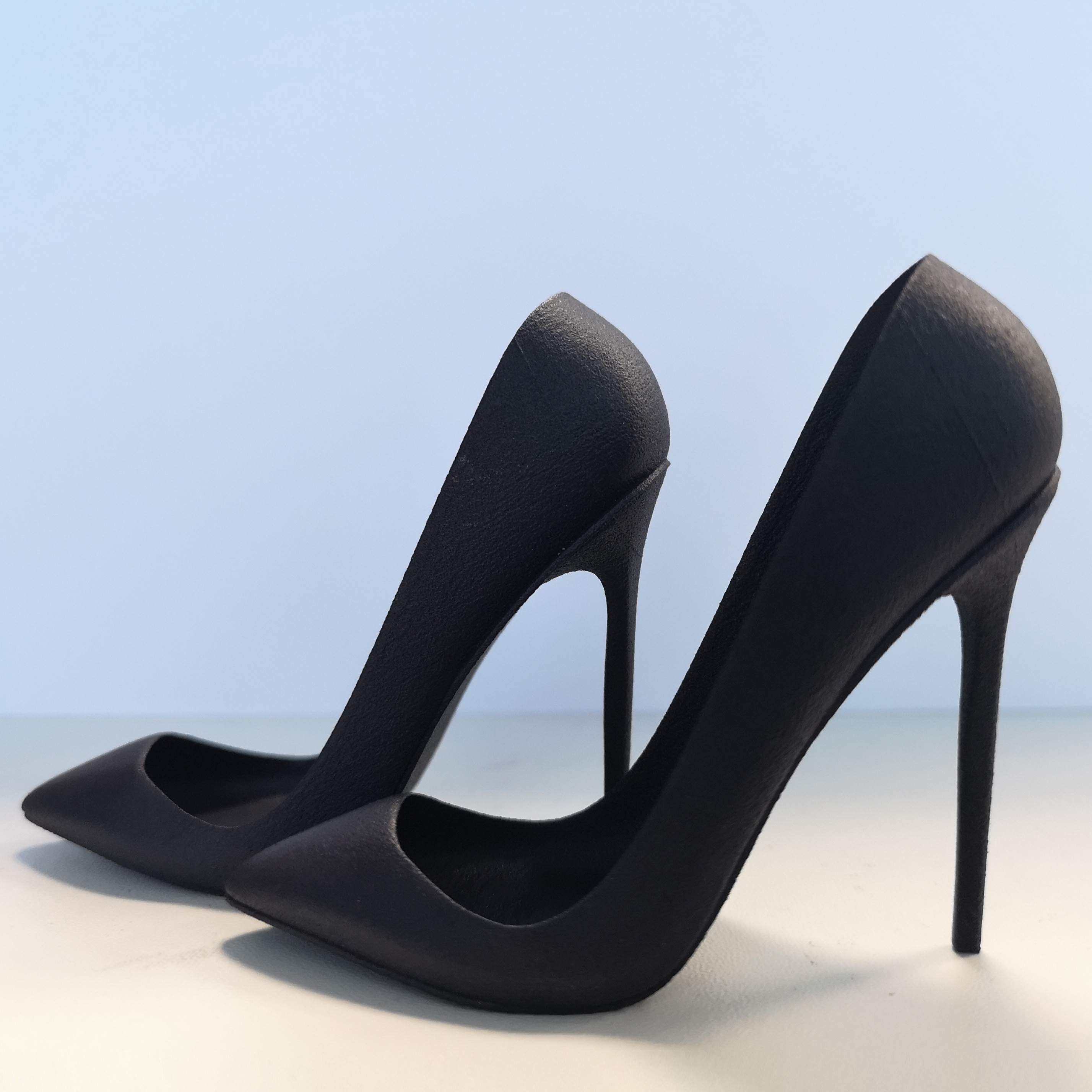

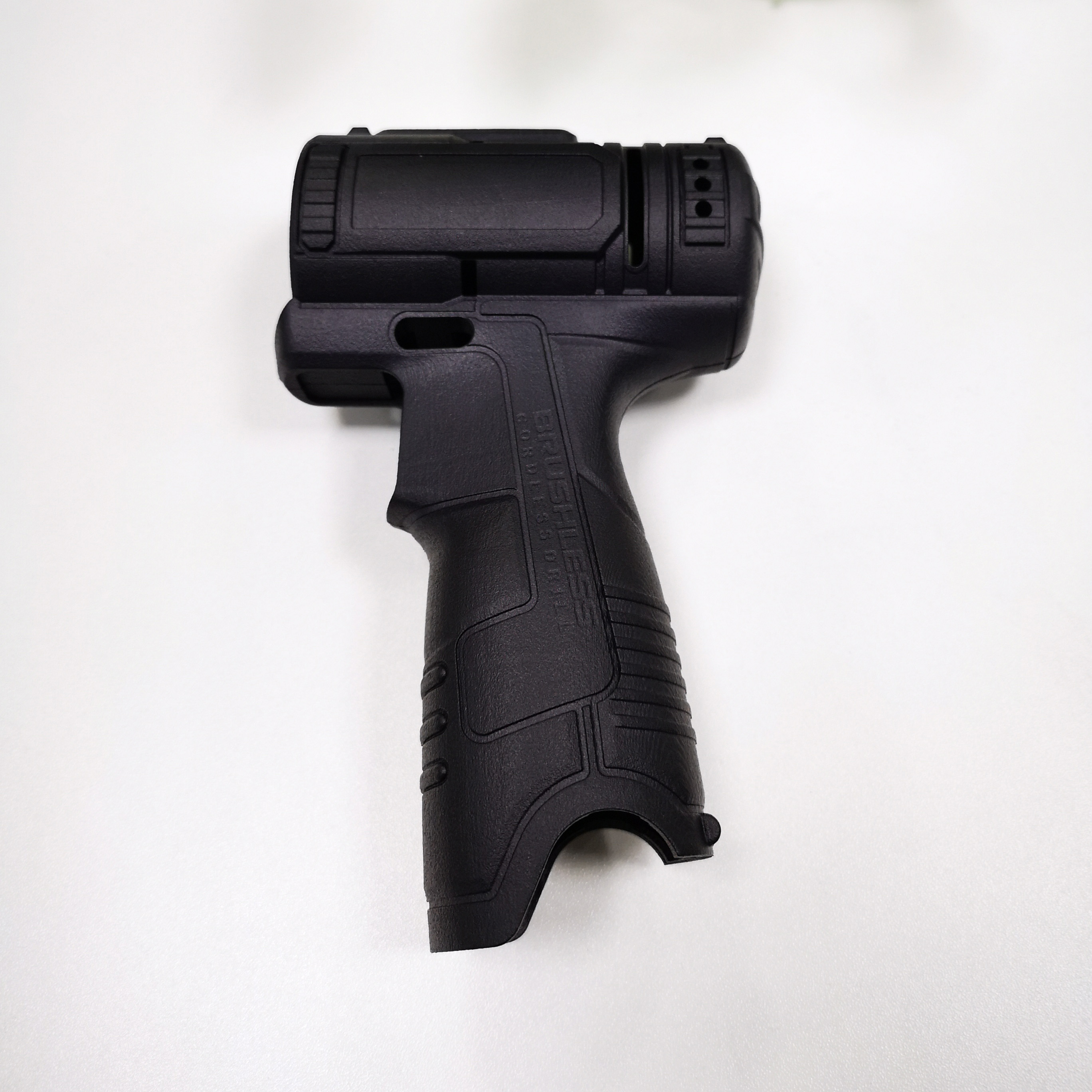

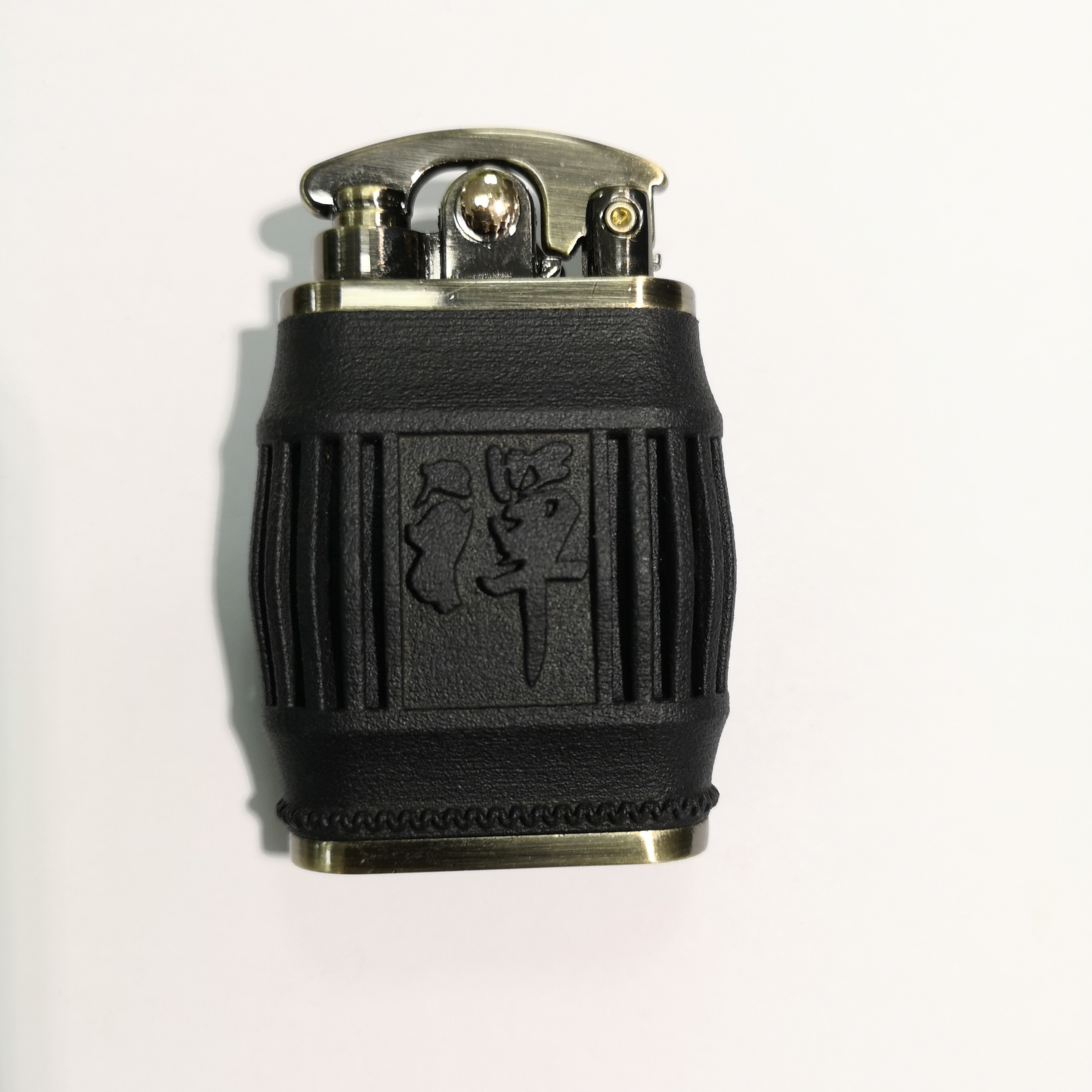

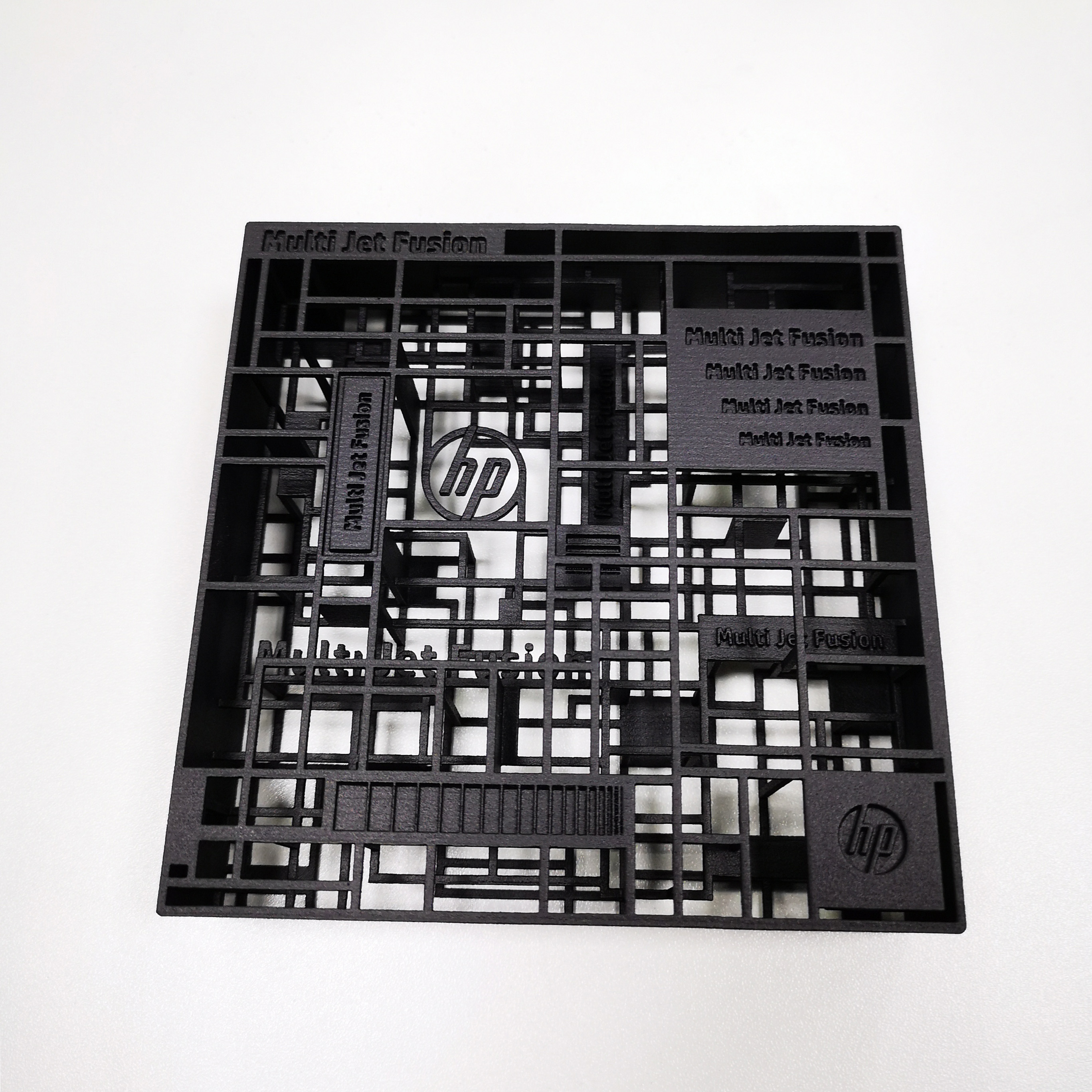

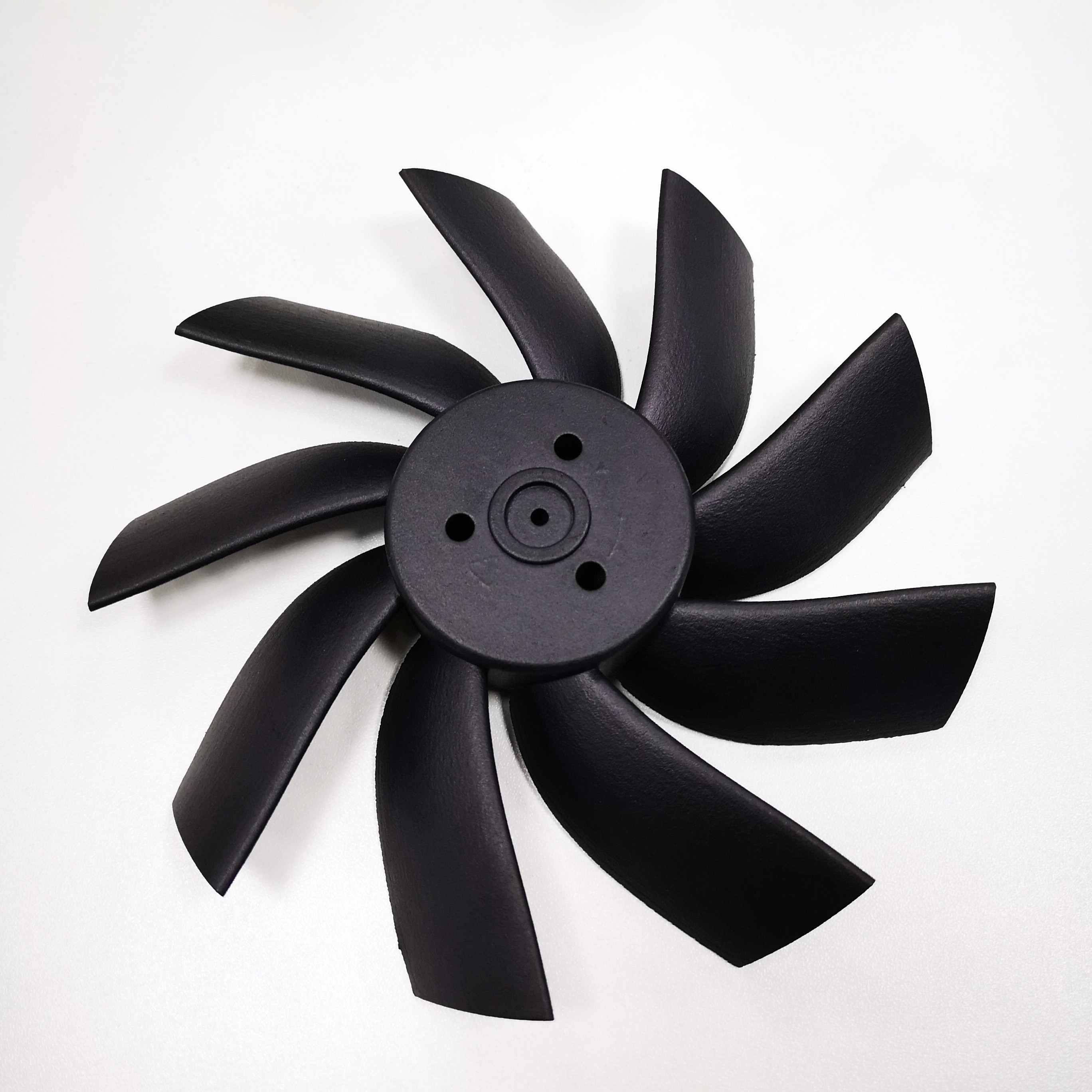

Dyeing effect of dark materials:
